[PConline evaluation] For the laundry, as consumers, our focus is basically whether the washing machine can clean the visible stains on the surface of the clothes, and we may not know much about the sewage washing caused by the filth inside the washing machine. To achieve a true cleansing of clothes, the solution to sewage laundry is also a top priority. TCL's contaminant-free washing machine is a series of innovative washing products introduced for the sewage laundry problem. The contaminated drum washing machine and the pollution-free impeller washing machine can all allow users to bid farewell to the sewage laundry and get a real clean laundry experience.
Next PConline evaluation room to bring everyone is a TCL from the TCL-type drum washing machine, this washing machine in addition to allowing users to bid farewell to the sewage laundry, it also has a comprehensive function and excellent performance.
Appearance Appreciation
From the overall appearance point of view, TCL this pollution-free style gives a simple feeling of the atmosphere, the front door is very large and eye-catching.
The fuselage is still relatively thin, and the washing machine will not occupy too many positions in most home environments. The concave-convex side wall plate can provide better sound insulation in the washing machine process.

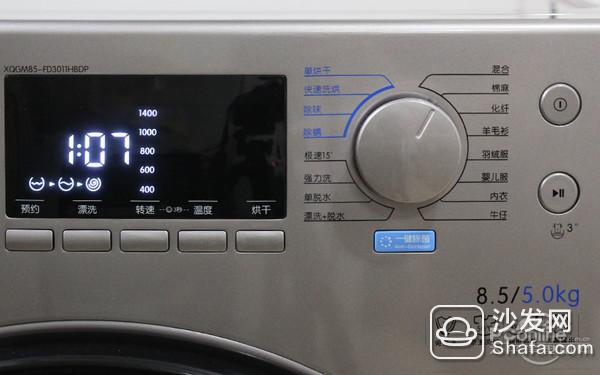

The control zone uses a display screen with knobs and various physical buttons. This design is believed to allow most people to get started quickly, and the buttons and knobs are very practical designs. On the display screen, various parameters in the laundry process can be set in more detail. The rotation speed, temperature and drying degree can be set and the function is very comprehensive.
The feeding box uses a hidden handle, and the front of the fuselage looks simple.
Pull out the feeding box, which is divided into three compartments, from which we can put in the corresponding amount of detergent, softener and so on.
More appearance details
The angle of opening of the door is very large. It is convenient to pick and place clothes. During the washing process, the operation of the washing machine can be observed through the large door glass.
The body and door are engaged by electromagnetic door locks. The electromagnetic door lock can realize stop-and-open and have higher safety.
The high-strength alloy shaft secures the door to the body, and the damping of the swing of the hatch is quite good.
The inner convex honeycomb crystal inner tube has dense water outlet holes, and the regular grain design inside can also make the clothes and the water energy have more full contact and effectively improve the efficiency of the laundry.
Open the lid on the front right side of the fuselage to see the drain and the drain pump. These two drains are mainly used to clean the remaining water in the body. The normal laundry drain of the washing machine is behind the body.
This washing machine has reached the level of energy efficiency at the national level, and the washing ratio is 1.05, which is regarded as an excellent level.
It can be seen from the back of the fuselage that this washing machine is designed with a lower drainage. This design has the advantage that the drainage efficiency will be higher and the drainage will be more thorough, but the installation environment must meet certain requirements and it must be installed at home. The location of the device.
Appearance Summary: This TCL pollution-free drum washing machine, simple and atmospheric design, workmanship also showed a solid quality, control area using physical buttons, knobs and LCD display design also greatly enhance the practicality of the machine. In general, this is a washing machine designed to match the current home style. At the same time for two consecutive years in Germany's iF International Design Award.
Water seal cabin technology, let you say goodbye to sewage laundry
Ordinary drum washing machine is easy to hide dirt
Washing machine is easy to filth This probably most consumers know that for the traditional drum washing machine, the aluminum support triangle tripod at the bottom of the inner cylinder, the bottom of the inner cylinder and the bottom of the outer bucket are the three most likely to hide the dirt. The tripod at the bottom of the inner cylinder will cause rusting due to the long-term exposure to the water flow inside and outside the cylinder. The gap between the tripod and the bottom of the inner cylinder will also easily leave dirt. When the washing machine is in operation, the water flow will continue to be inside and outside the cylinder. Between the flow, the hidden dirt will be scoured by the water, the water entering the washing machine will be secondarily contaminated, and the sewage laundry will be inevitable.
Water seal cabin technology
The patented watertight cabin technology of TCL pollution-free drum washing machine is to change the sewage washing status of the traditional drum washing machine. Firstly, the tripod at the bottom of the inner cylinder is sealed, and the sealing strip also has excellent waterproof effect. This heavy sealing It also eliminates the hiding of dirt in the gap between the groove of the tripod itself and the bottom of the inner barrel.
New design at the bottom of the cylinder
In addition, the bottom of the inner tube and the bottom of the outer tube are all integrated into a flat bottom design. The bottom of the flat-bottomed disposable inner tube and the bottomless, clean outer barrel design all have a smoother surface and will not hide dead corners of the dirt. Naturally, there will be no residue and dirt, and the erosion of the water will also wash away some stubborn dirt and completely solve the problem of residual dirt inside the washing machine. This also solves the problem of contamination of the bottom of the inner cylinder and the bottom of the outer cylinder.
From the meaning of laundry, the water-sealing cabin technology has also enabled the drum washing machine to achieve an uncontaminated laundry. This is very attractive for users who are pursuing a healthy life, and the water seal cabin technology is also a technology of this product. Advantages, truly improve the laundry experience for users.
Wash test
Whether the washing machine can really clean the clothes is surely everyone's concern. The next degree of cleanliness test will use the cotton and linen pattern to wash the dirty cotton T-shirt to see if this washing machine can show strong enough. Washing ability.
The entire washing process of the cotton and linen pattern takes an hour to start. The washing machine will also measure whether or not the time needs to be increased according to the specific amount of clothes. The laundry will increase and the washing time will increase correspondingly.
First, a white T-shirt was coated with five kinds of mustard, soy sauce, peanut oil, tomato sauce, and mud stains. In real life, such a variety of stains appear on one piece of clothing and it is considered extremely dirty. Dirty.
After the laundry is over
After washing, you can see that the washing effect is still quite good. There is no visible stain mark on the clothes. In particular, the two kinds of very deep stains on the clothes, ketchup and soy sauce, have been completely removed. The laundry effect is satisfactory, and the entire laundry process consumes only 0.11 kWh of electricity and consumes 36 liters of water. Energy-saving performance is also acceptable.
15 minutes quick wash test
Fast washing for 15 minutes is also a must-have feature for today's mainstream washing machines. In response to daily life only sweat or low-level clothing, plus the time rush, we can use the 15-minute quick wash mode to quickly wash clothes .
TCL's "Fast 15 points" is a fast washing function. In 15 minutes, the entire laundry process is complete, but each process will run for a shorter time.
To test the 15-minute quick wash function, the author chose a white T-shirt that had been glued with more mud stains to test and see how the 15 minute washing process could make the clothes clean.
After the laundry is over
After 15 minutes of washing process, from the comparison of the clothes before and after laundry, the cleanliness of the clothes is still very obvious. Only when you look at the clothes, can you see that there are very few marks of mud stains, most of them Mud stains are cleaned. This also shows that the 15-minute quick-washing model is perfectly suitable for dealing with perspiration only in everyday life. Coping with some light-stained clothing can also provide satisfactory satisfactory cleansing effect, while the 15-minute fast wash consumes only 0.02 kWh of power. With a water consumption of about 33 liters, the power consumption is really low, and the water consumption is basically the same as conventional washing.
Quick washing and drying test
This washing machine also features a quick washing and drying function, which only takes 40 minutes to complete the laundry and drying process.
Before the fast wash and bake test, the clothes were painted with 5 different stains to see if the fast wash bake can both clean and dry the clothes.
After the laundry is over
After the test is over, the first impression of clothing is that it is drier than that of the clothes after the non-drying washing process is finished. It is very close to the state of full dryness, and it can be comfortably worn by slightly drying. In terms of the cleanliness of the clothing, other stains have been washed very clean, except to look at the remaining marks of ketchup. In general, this function is very good for clothing that is usually not sweaty or has a particularly high level of dirtiness. The process of washing and drying can be completed in 40 minutes, and the drying time for drying clothes is greatly reduced.
Single drying test
TCL this dirt-free drum washing machine also has a single drying function, using this feature, we can open the function after the end of the regular laundry program to dry clothes. The amount of drying clothes tested this time was three T-shirts and one pair of jeans. The time displayed on the machine was 2 hours. The drying time was within a reasonable range.
Before drying, the clothes were 1424 grams in a dry state.
After the laundry was finished, the clothes were dehydrated and the weight of the clothes was 2046 grams. The cotton T-shirt and the thicker jeans absorbed a lot of water.
After drying, the weight of the clothes is 1447g, which is already very close to the weight of the clothes. The T-shirt is fully comfortable to wear. Because of the thicker jeans, it may retain some moisture, but the overall The drying effect is close to the ideal state. In actual use, we can appropriately increase the number of drying of the clothes according to the material and quantity of the clothes. When it rains in the rainy season, we really do not need to worry about the problem of clothes drying.
Dehydration efficiency test
The dehydration efficiency test will be performed using a soaked white T-shirt and a soaked pair of jeans. The combined weight of the two items before dehydration is 2173 grams. We will test the rotational speed at each level to compare the efficiency of dehydration.
TCL this dirt-free roller washing and drying machine is equipped with a variable frequency motor, so the washing machine can achieve five kinds of dehydration speed, these five kinds of speed can meet the dehydration needs of most of the clothes in life, the highest at 1400 can be the most obvious dehydration The effect of dehydration is also obvious.
Running noise test
In the conventional laundry process, the noise of the washing machine floats up and down at 60 decibels, and when the water is sprayed on the clothes, the sound is more pronounced, and when the inner drum is rotated and washed, the noise of the washing machine does not cause people troubles.
When it is dehydrated, the noise of the washing machine is much higher than that of the laundry. It fluctuates at 70 decibels, which is about 10 decibels higher than that of the laundry. So late at night, if your washing machine is close to the bedroom, then Or do not open the washing machine at night to wash clothes as well.
Evaluation summary: The biggest highlight of this TCL contaminant-free drum washing machine is, of course, its internal structural design that can really isolate the sewage, this will directly bring us a healthier laundry experience, and washing and drying one also makes this product have more With comprehensive functions, Meiyutian can also be used without worrying about whether the clothes can be dried. Generally speaking, this is an innovative and balanced quality washing machine product, and it will also be a new choice for many users who focus on laundry health.
