TDA7496L power amplifier circuit diagram

Shunluo Inductance Power Inductor SWPA Series First Class Agent

High-power led lamp beads 1W white light Sanan 30mil high power LED lamp beads imitation lumens

Industrial Router Crystal 3.2*2.5mm 3225 26M (26.000MHZ) 12PF 10PPM 20PPM 30PPM

Murata muRata winding inductance original authentic assured purchase

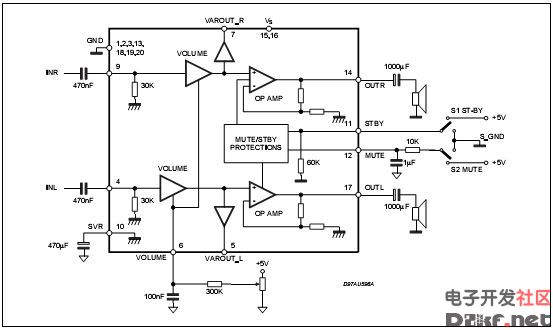

This is the original circuit diagram

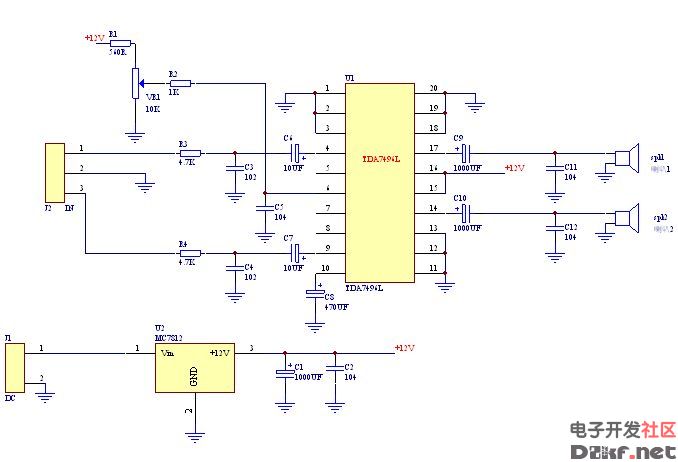

This is my simplified drawing

I added a 7812 voltage regulator circuit to drop the unneeded function feet. After the output, it is the same as the same. Only one base device can adjust the volume of the two channels.

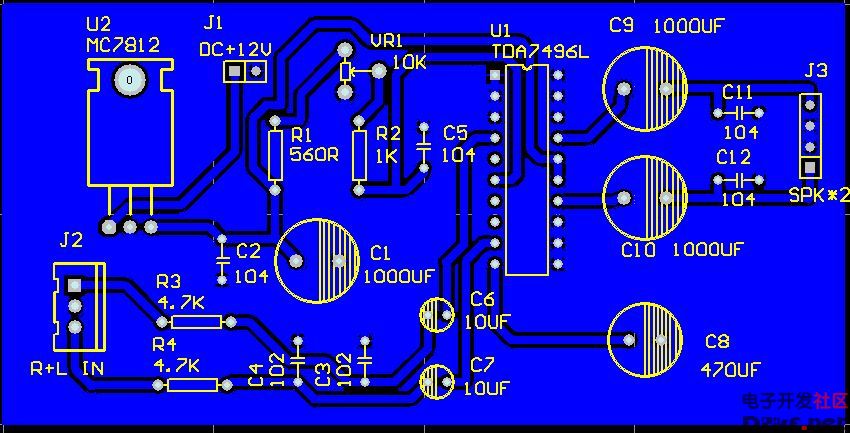

This is the pcb board I designed.
